Votum Ltd participated in adaptation and debugging
of the software, that was created by ATR
Automation & System Integration company for Simatic
S5 135U system that controls the sizing (glueing) and the processing
line at flakeboard production plant (Krono-Osmoloda enterprise).
The task consisted in substitution of the hardware

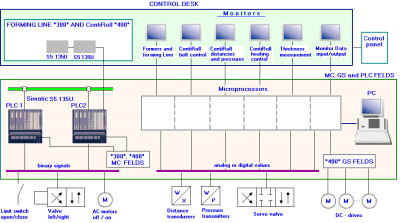

and the software (figure
1) that were developed in 1991 for present-day automated control

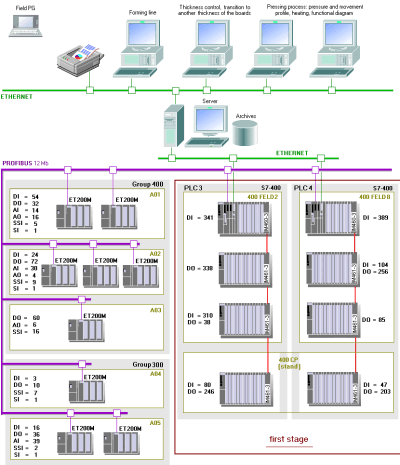

system (figure
2) on the basis of Simatic S7-400
& Simatic DP ET200M.
Debugging of the software is performed for following technological
objects:
glueing (sizing) of the shavings for external and internal
layers;
spreading machines for external and internal layers;
forming line;
pre-press;
ContiRoll® press;
roller beds;
turnover device
and others.
